Virtual Lab: Projection Electron Lithography (SCALPEL)
University of Virginia


© 2003-Present, John C. Bean

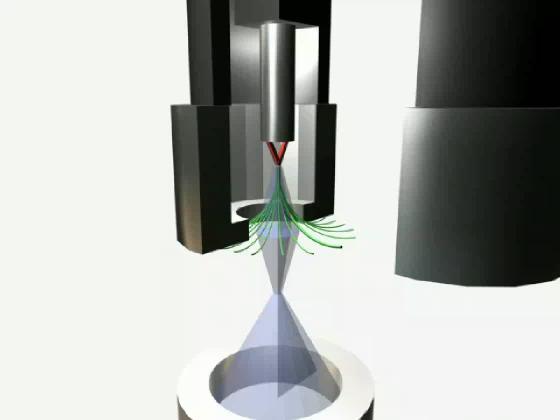

An electron lens system (shown as a quartz lens for simplicity) focuses the beam onto a thin patterned mask.

The mask is made up of a thin membrane of high atomic number on top of another membrane of low atomic number.

The circuit pattern in the top membrane will be projected onto the wafer.
