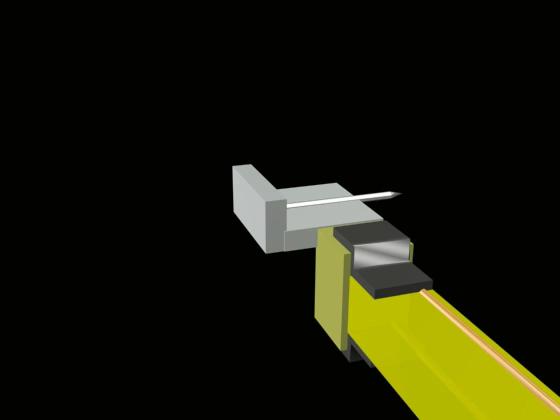

This is called the X, or X-axis drive of the STM probe.

Note that as this piezoelectric crystal expands, it forces the previous Z-drive arm (not now shown) to bend side to side. This is facilitated by making the arms out of a flexible circuit board material.
