Virtual Lab: Three Battery Cells
 University of Virginia


© 2003-Present, John C. Bean

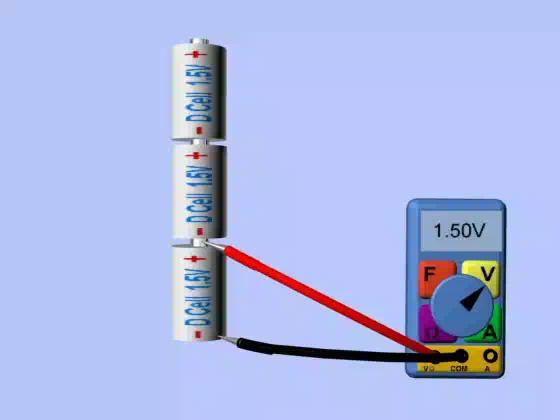

Cell voltages in series add. The potential difference (voltage) between the top and bottom of two cells is 3.0 Volts.
