Virtual Lab: SPM Piezoelectric Crystals
University of Virginia


© 2003-Present, John C. Bean

If we attach the positive lead of a battery to the top of this block, and the negative lead to its bottom, this will create a downward electric field through its volume. (Here we have used the symbol for a battery: two parallel lines, the longer on the positive side).

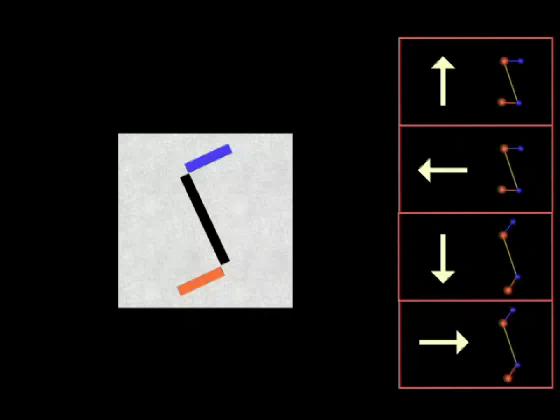

From the table at the right, we can see that this particular block should then stretch vertically.
