Virtual Lab: SPM Piezoelectric Crystals
University of Virginia


© 2003-Present, John C. Bean

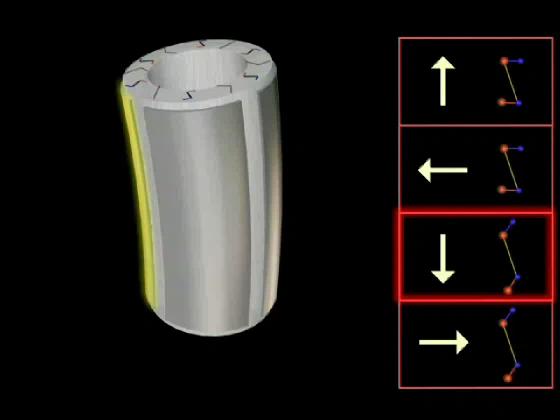

There is a final length of piezoelectric tube at the bottom of the assembly. On this segment, a single metal electrode runs around the outside of the entire tube.

If a positive voltage is applied to this electrode, the tube thickens and shortens. This motion is used to raise and lower the SPM cantilever.
