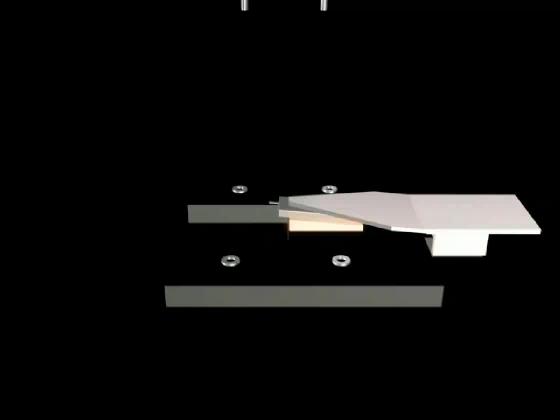

After the operator loads the cantilever / tip into the holder, the holder is flipped over (so that the tip faces downward).

The holder is then plugged into the bottom of the SPM head.

Now it is time to look inside and see how the head operates.
