Virtual Lab: Capacitor Water Tank Analogy
University of Virginia


© 2003-Present, John C. Bean

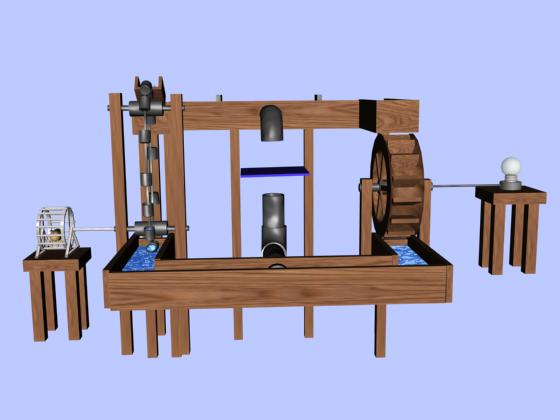

This represents a circuit. In this movie, the gerbil running in its wheel and the bucket pump are the equivalent of a battery. The water represents the flowing electrons. The membrane in the middle is the circuit’s capacitor. The spinning waterwheel represents the resistor which powers the light bulb.

To start this tour, click the "Next Scene" button at the bottom of this page.

To navigate further, use the buttons at the bottom of the page. (You can also move between scenes by using your keyboard’s arrows, and then play movies by clicking enter/return).

At any point, you can jump ahead by clicking an icon above the picture.

To see related webpages on this website, click the "Related Pages" button above.
