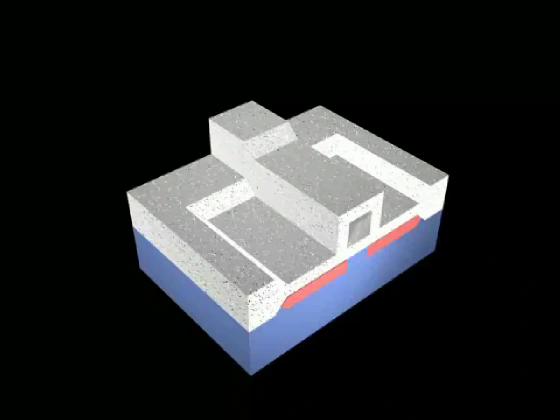

Mask #3 for contact windows:

A photographic emulsion is applied.

Portions of emulsion are exposed to UV light projecting thru a shadow mask.

Where UV light strikes the emulsion it breaks molecular bonds.

The regions of weakened emulsion are removed by solvent.
