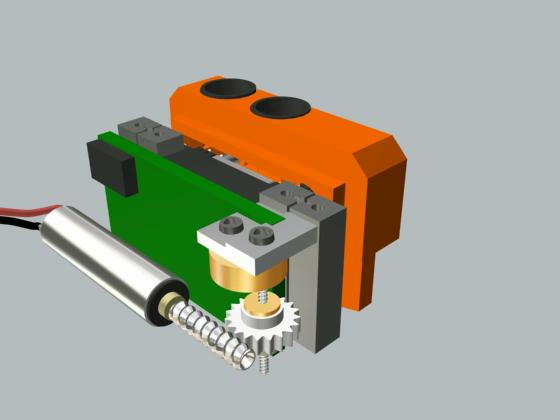

This is how the head and its vertical drive fit inside the AFM body.
As the head is driven up and down, a ribbon wire flexes to maintain the electrical connection to the head.
But the really fine scale movement of the cantilever is controlled from inside the head assembly.
|
|
|
|
|
|
|
