Virtual Lab: Capacitor and a Resistor
University of Virginia


© 2003-Present, John C. Bean

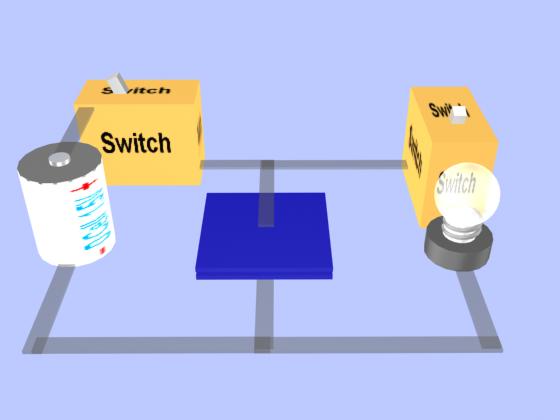

In this simulation the cell will be used to charge a capacitor. The capacitor will then be used to operate a light bulb until the capacitor is discharged.

The capacitor is used to temporarily store some energy from the cell.

To start this tour, click the "Next Scene" button at the bottom of this page.

At any point, you can jump ahead by clicking an icon above the picture.

To see related webpages on this website, click the "Related Pages" button above.
