Virtual Lab: Capacitor & Resistors in Parallel
University of Virginia


© 2003-Present, John C. Bean

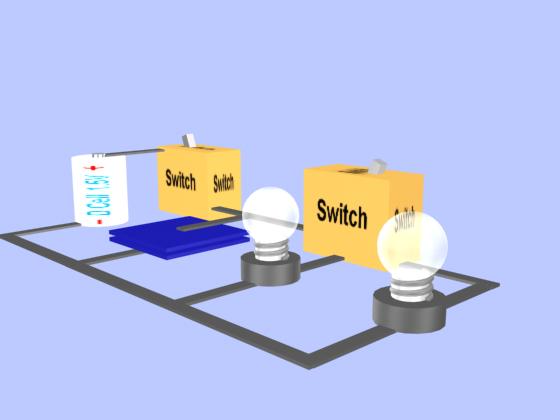

In this simulation the cell will be used to charge a capacitor. The capacitor will then be used to operate two light bulbs until the capacitor is discharged.

The capacitor is used to temporarily store some energy from the cell.

To start this tour, click the "Next Scene" button at the bottom of this page.

To navigate further, use the buttons at the bottom of the page. (You can also move between scenes by using your keyboard’s arrows, and then play movies by clicking enter/return).

At any point, you can jump ahead by clicking an icon above the picture.

To see related webpages on this website, click the "Related Pages" button above.
