Virtual Lab: Bulbs in Series and Parallel
University of Virginia


© 2003-Present, John C. Bean

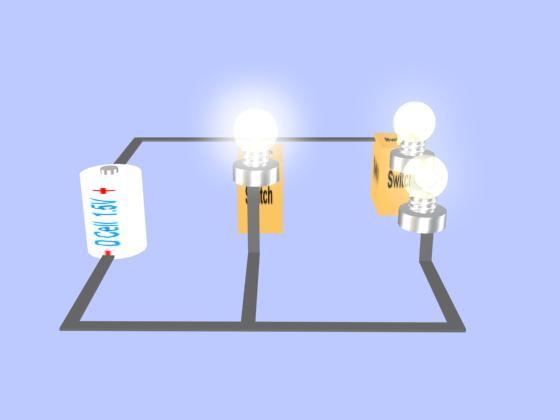

Let′s look at three identical bulbs: one connected in parallel to two connected in series.

In this circuit the two light bulbs on the far right are in series with each other. The light bulb in the middle is in parallel to the other two light bulbs.

To start this tour, click the "Next Scene" button at the bottom of this page.

At any point, you can jump ahead by clicking an icon above the picture.

To see related webpages on this website, click the "Related Pages" button above.
