Virtual Lab: Resistor Waterwheel Analogy
University of Virginia


© 2003-Present, John C. Bean

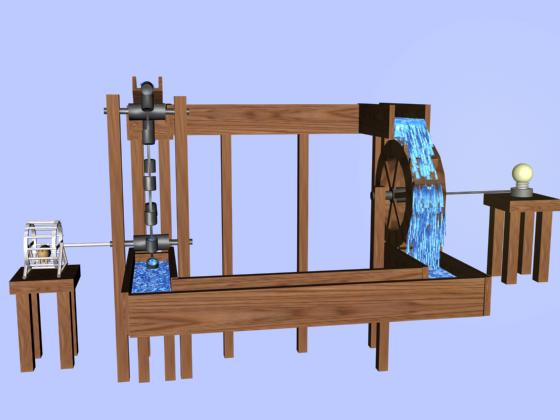

The water represents the electrons in the circuit. The height represents the voltage. The wheel represents the resistor. As the electrons fall from high to low, energy is available to do work. Note the electrons are just like the water and are not consumed as they fall from high to low voltage.

To start this tour, click the "Next Scene" button at the bottom of this page.

To navigate further, use the buttons at the bottom of the page. (You can also move between scenes by using your keyboard’s arrows, and then play movies by clicking enter/return).

At any point, you can jump ahead by clicking an icon above the picture.

To see related webpages on this website, click the "Related Pages" button above.
