Virtual Lab: EUV Lithography
University of Virginia


© 2003-Present, John C. Bean

EUV stands for Extreme Ultra Violet. This lithographic technique uses wavelengths of light so short that they will not pass through glasses. This means that lenses cannot be used to form and reduce images.

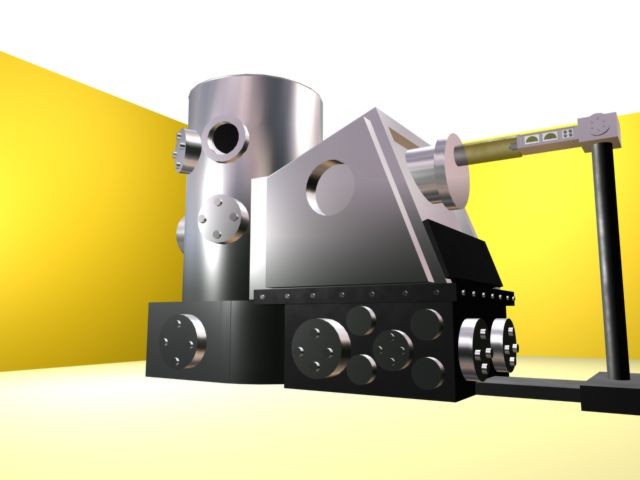

Instead, the optical system consists entirely of curved mirrors. Further, to reflect (rather than scatter) this very short wavelength light, the mirrors must be smooth to essentially atomic dimensions. The prototype is being built at the Lawrence Livermore Labs.

To start this tour, click the "Next Scene" button at the bottom of this page.

To navigate further, use the buttons at the bottom of the page. (You can also move between scenes by using your keyboard’s arrows, and then play movies by clicking enter/return).
