Virtual Lab: Magnetic Induction (Real World)
University of Virginia


© 2003-Present, John C. Bean

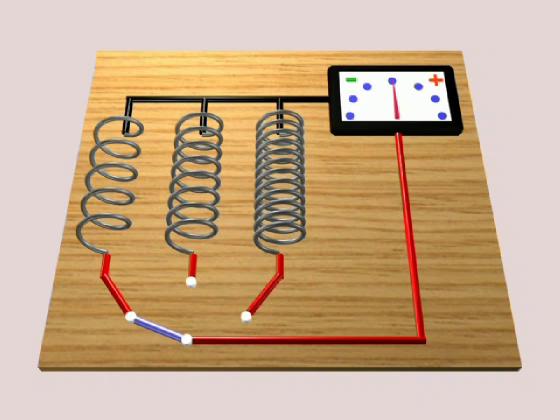

All three coils are wound in the same direction (as a "right hand" spiral).

In the same overall length, the left coil has 5 turns, the center 8 turns, the right 12 turns.

The tops of the coils are connected together and then fed to the input of a current meter

The output of the meter is switched from one coil to another
